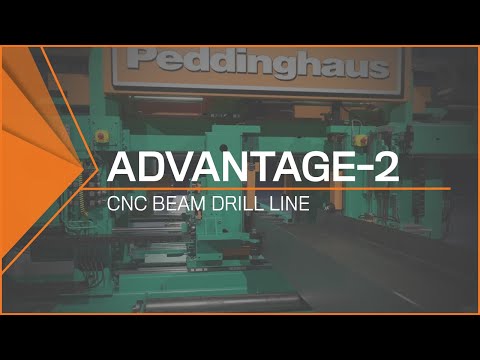

Powered by 25 HP (18.5 kW) Siemens spindle motors, the Advantage-2 is outfitted with 3 drill spindles, each equipped with 5-station tool changers. This powerful drilling technology allows for maximized operating time and drill hole quality.
4-Axis Carbide Scribing
A 4-axis layout marking attachment eliminates human error in manual layout methods. Part information is retained even after painting, blasting and galvanizing.
Nonstop Throughput with Roller Feed Measurement
Peddinghaus’ Roller Feed Measurement system exceeds the industry standard for roller measurement technology. Maintaining accurate measurements without any hesitation in production is crucial. Accuracy is not compromised even despite deviations in material.
Sturdy Drill Clamping to Eliminate Vibration
The Advantage-2 employs a series of support clamps in order to achieve optimum rigidity of the workpiece through the machine. Carbide tool life is best sustained with the least amount of vibration possible.
Band Saw Integration
The Advantage-2 CNC beam drill line with its powerful material handling support, meticulous measurement capabilities and high speed designs are ideal for tandem installations with any of Peddinghaus' automatic sawing systems.
AccuMeasure Allows Complete Handling Control
Saw measurement options are available via the Peddinghaus AccuMeasure Roller Feed measurement system. The AccuMeasure allows for complete handling versatility, while maintaining a streamlined CNC solution. Splitting apart a drill and a saw allows neither machine to wait for the other, maximizing production.
MultMaster Measurement System For Remnants
The MultMaster works as an extension of the Roller Feed measurement system in order to perform cuts which may otherwise require manual positioning for programs with many small pieces. This accessory allows fast and simple material processing on a Peddinghaus drill and saw tandem system by automating the processing of short remnant sections.
Raptor 3D CAD/CAM Software
Developed by Peddinghaus, Raptor 3D CAD/CAM Software takes CNC innovation further by enabling users to program faster and more accurately. Inspect, modify and export part information directly within the 3D platform. This coupled with Peddinghaus CNC technology means maximum capacity for fabricators.
Structural Steel Drill Line
High Speed Carbide Drilling
Milling
4-Axis Carbide Scribing
Three Drill Assemblies
5-Station Tool Changers (3)
Siemens Spindle Motors
Minimum Quantity Lubrication
Superior Clamping System
Peddinghaus Control
MultMaster Measurement System
AccuMeasure System
Raptor Software
Countersinking
Tapping
